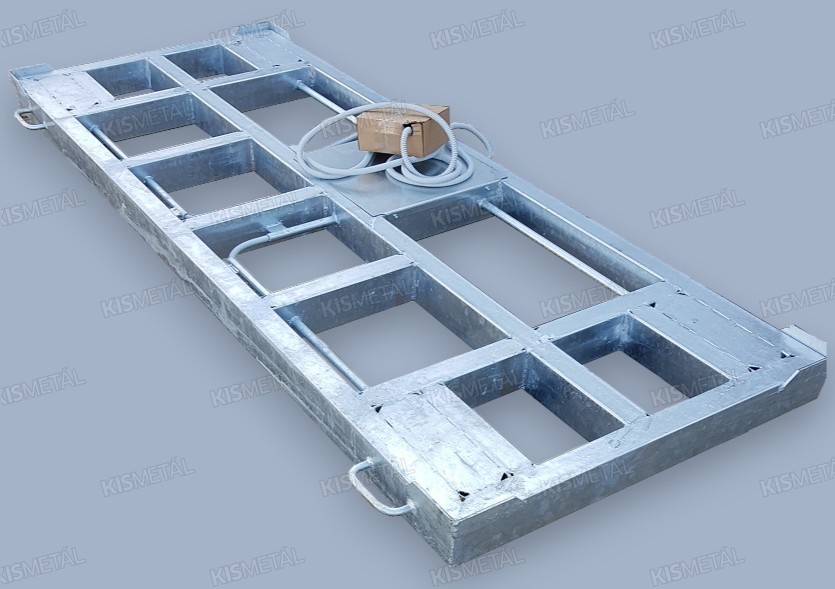

Hot-dip galvanized weighing frame 2465 mm x 925 mm (Range : 3000 kg)

Article number
KM-MG-4-01-H

Description:

Weighing frame.

At the top it has metal corners for joining to the crush.

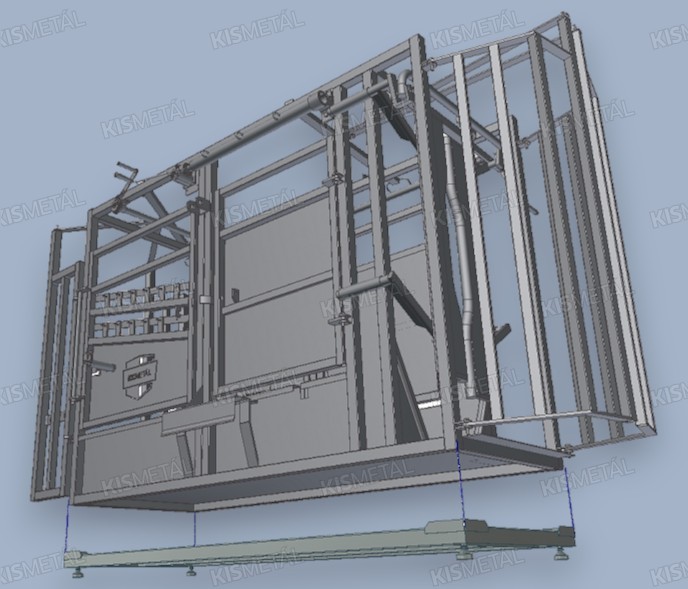

After delivery, the scale must be placed under the crush or weighing crush, and then the scale shows the weight of the crush. The weight of the crush can be tared, at which point the scale switches to net mode and shows the zero value.

The weight that can be displayed is the maximum weighing capacity (3000 kg) minus the weight of the crush.
Maximum weighing capacity without crush is 3000 kg
Measuring division: 1 kg

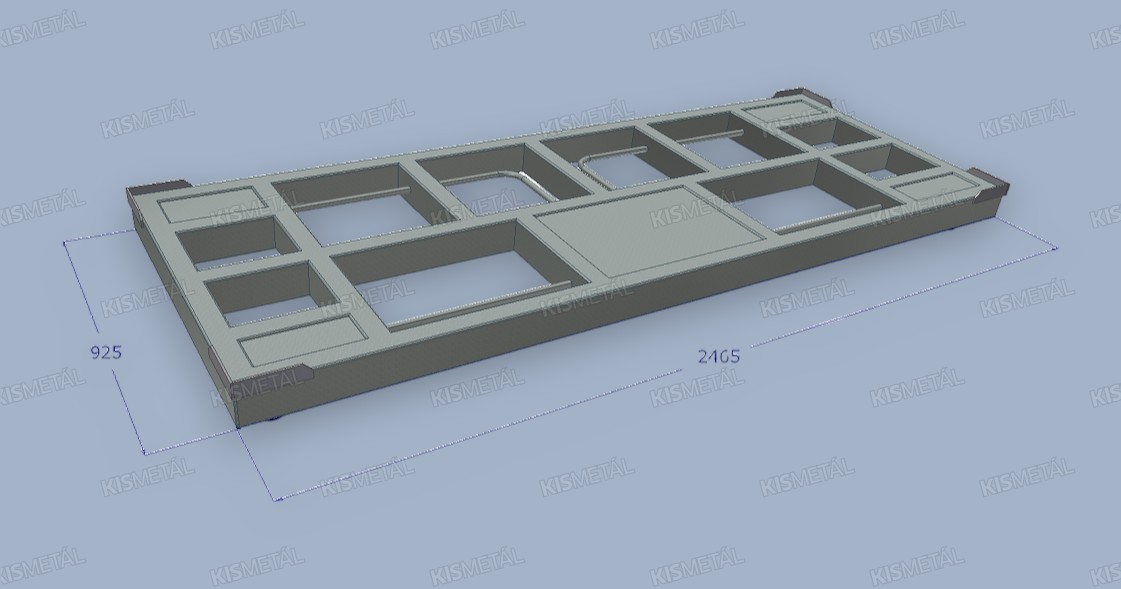

Length: 2465 mm
Width: 925 mm
Advantage: works without crush, as an independent scale.

Surface treatment:

Hot-dip galvanized.

Weight:

130 kg

The measuring display must be selected separately from the offer, it is not part of the price!
